Mixing and Mastering for Vinyl

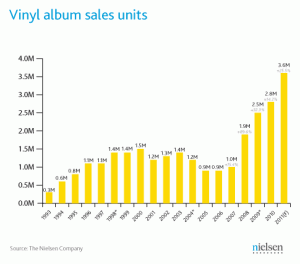

Vinyl Album Sales by Year

During the AES Convention in New York City this past October, I was fortunate enough to attend a lecture given by mastering engineer Scott Hull of Masterdisk Studios. The lecture focused on creating mixes and masters for vinyl pressing. Though there are those of us who might not even release music on any physical medium these days, there are many who like the look, feel, and most importantly, sound, of music on vinyl.

While there are “rules” associated with recording in the digital domain (keep sample rate and bit depth high, do not go over 0 dBFS, etc), audio engineers don’t necessarily worry about the effects of printing this digital data onto a compact disc. Vinyl records are a much different animal, however. Those who wish to release music in this format would do well to know how the physical characteristics of these records might affect your sound.

The Physical Disc

We all know that the needle of a player traces along the grooves of the record. The groove is an analog representation of the audio. In the days of mono, the needle only moved side to side while tracing through the groove. Later, the format was designed so that the stereo information could be read from the up and down movement of the needle. This was done to ensure that older, mono only record players could still play newer stereo records. [1]

With a CD, the music encoded on the outer portion of the disc has the same fidelity as that encoded towards the center of the disc. The same is not true of vinyl records, however. While the record spins at the same rate at the outermost and innermost portion, the amount of vinyl the needle encounters is reduced as it works its way to the center.

Say you took a piece of string and wrapped it around the outer edge of the record. For a 12” (diameter) record, the string would be about 36” long. If you wrapped string around the innermost groove, you’d have a 4” diameter circle and about a 12” length of string. The needle traverses both these lengths of strings in the same amount of time. So if it takes the needle one second to trace the entire circumference of the record, it would be travelling 36” per second at the outside and only 12” per second towards the middle. This is effectively like recording on analog tape at 30 ips at one end of your album and 15 ips at the other end. [2]

Limitations of the Format

It is first important to realize that cutting a record literally means just that. Putting your album on wax means scooping out pieces of the material. The louder your material, the more room the needle needs to move. If your material is too loud, it could cut through to the next adjacent groove. Another consequence of this is the inverse relationship between groove size and the number of grooves you can fit on a record. The wider the grooves, the fewer you can fit. This means the louder your music, the less of it you can fit on one side.

Keeping low frequency information panned down the center will help reduce the motion of the needle and keep your playback clean. An effect like stereo chorus on a bass guitar would wreak havoc.

Don’t try to fit too much material on a disc. As noted earlier, the stuff in the center can sound a bit nasty. If possible, reserve the first tracks for the more complex program material, and the later tracks for less harmonically dense music.

Self-mastered releases are competing more and more with professional mastering houses and producing similar results. Sending your mastered audio to a pressing plant for duplication may result in a release with sub-par audio quality. For a vinyl release, it is recommended to create your own masters only as a reference for a mastering engineer who understands what will and won’t translate to vinyl. They’ll be able to create the best version of your release for the medium without sacrificing the quality you strove for.

[1] The way stereo information is encoded onto vinyl is more complicated than simple Left and Right channels. The term “mono information ” refers to L+R, while the term “stereo information” refers to L-R. This type of encoding is similar to mid-side processing.

[2] The numbers used here are created arbitrarily to illustrate the point.

Missing our best stuff?

Sign up to be the first to learn about new tutorials, sales, giveaways and more.

We will never spam you. Unsubscribe at any time. Powered by ConvertKit
Barak Shpiez

Barak Shpiez

Barak Shpiez has earned several degrees in composition, audio engineering, and electrical engineering. His music can be found on programming on MTV, The History Channel, and more. Barak has also worked for several concert venues running live sound and as an engineer for Line 6 and DTS.
  • Filippo Gabbrielli

    While the article very well explains the limitations of the vinyl medium and what cutting engineers have to face to put the best information on the disc, I have always thought that the M/S encoding the stereo information on the disc would allow new record players to play old mono records and not the opposite. In fact, old mono cartridges were not built for moving the stylus up and down but only laterally, so if a stereo record had been played with a mono cartridge the record would be damaged.

    • In the late 1950’s and 1960’s when stereo records came out many people continued to use mono players. Those days many portable players were mono only. These mono players were manufactured for some years after the introduction of stereo. The mono stylus mountings were compliant enough to accommodate both mono and stereo grooves. Some players had a turn-over cartridge with a microgroove stylus on one side for LP a and a stylus for playing 78 RPM records on the other. (Here we are not talking about the wind-up gramophone but that only played 78 RPM records anyway).

  • Adam Dempsey

    In other words, of greatest consideration & potential issues for vinyl is the program length per side. Processing aspects really are secondary to this.

    Just make your mixes sound great. Have kick & bass panned center, ensure no clipping or unnecessary peak limiting for loudness, and no unnecessary conversion to 16 bit/44k (needed only for CD). Pro mastering stage will help ensure such issues and provide added quality control, checking for any excessive sibilance or sub-bass within the context of the side lengths.

    And, as with any serious release, checking test pressings is always recommended!
